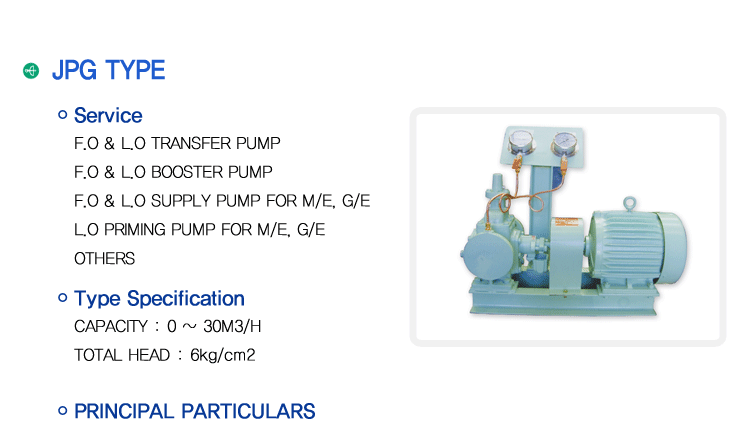

| Item / Model | JPG-2 | JPG-3 | JPG-5 | JPG-10 | JPG-15 | JPG-20 | JPG-30 |
|---|---|---|---|---|---|---|---|
| R.P.M | 900 ~ 1750 | ||||||
| Suction bore (mm) | 25 | 32 | 40 | 50 | 65 | 80 | 80 |
| Discharge bore (mm) | 25 | 32 | 40 | 50 | 65 | 80 | 80 |
| Stuffing box seal | MECHANICAL SEAL | ||||||
| Weight GC (BC) (kg) | 13 | 16 | 25 | 35 | 45 | 65 | 70 |

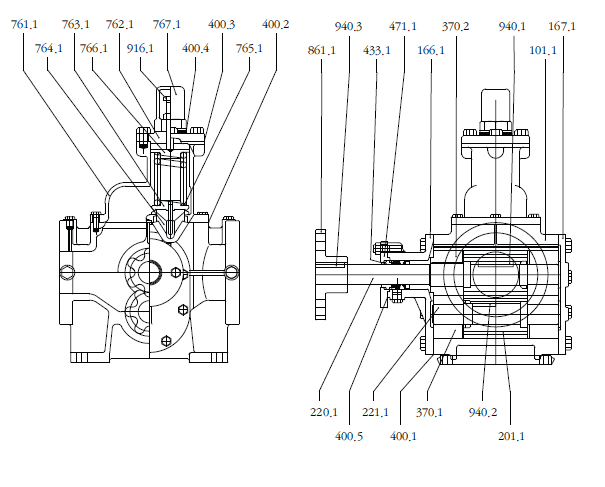

| PART NO | NAME OF PART | QUAT | MATERIAL CLASS | PART NO | NAME OF PART | QUAT | MATERIAL CLASS |
|---|---|---|---|---|---|---|---|
| 101.1 | PUMP CASING | 1 | CAST IRON | 761.1 | VALVE BODY | 1 | CAST IRON |
| 166.1 | SIDE COVER (INNER) | 1 | CAST IRON | 762.1 | VALVE COVER | 1 | CAST IRON |
| 167.1 | SIDE COVER (OUTER) | 1 | CAST IRON | 763.1 | SAFETY VALVE | 1 | STAINLESS STEEL |
| 201.1 | GEAR | 2 | CARBON STEEL | 764.1 | VALVE SEAT | 1 | BRONZE |
| 220.1 | DRIVE SHAFT | 1 | CARBON STEEL | 765.1 | VALVE SPRING | 1 | SPRING STEEL |
| 221.1 | DRIVEN SHAFT | 1 | CARBON STEEL | 766.1 | SPRING CARRIER | 1 | STEEL |
| 370.1 | SLIDING BEARING | 3 | BRONZE | 767.1 | VALVE CAP | 1 | CAST IRON |
| 370.2 | SLIDING BEARING | 1 | BRONZE | 861.1 | COUPLING HALF | 1 | CAST IRON |
| 400.1 | GASKET | 2 | OIL PAPER | 916.1 | ADJUSTING SCREW | 1 | STEEL |
| 400.2 | GASKET | 1 | OIL PAPER | 940.1 | DRIVE SHAFT KEY | 1 | CARBON STEEL |
| 400.3 | GASKET | 1 | OIL PAPER | 940.2 | DRIVEN SHAFT KEY | 1 | CARBON STEEL |
| 400.4 | GASKET | 1 | ASBESTOS | 940.3 | COUPLING KEY | 1 | CARBON STEEL |
| 400.5 | GASKET | 1 | ASBESTOS | ||||
| 433.1 | MECHANICAL SEAL | 1 | |||||
| 471.1 | SEAL COVER | 1 | CARBON STEEL |
HORIZONTAL SINGLE STAGE GEAR PUMP
